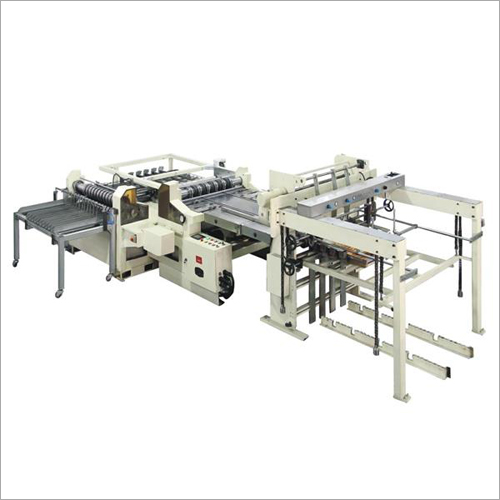

5L Semi Auto Chemical Round Can Body Cutting Machine

5L Semi Auto Chemical Round Can Body Cutting Machine
5L Semi Auto Chemical Round Can Body Cutting Machine
Send Inquiry
Product Code : 04
Product Description

5L Semi Auto Chemical Round Can Body Cutting Machine is used to cut silicon steel sheets and other sheet steels for transformer, electric motor, and other industries. This cutting machine uses manual feeding and disc blade roll shearing mode to cut iron sheets. High quality alloy too steel and advanced process are used in disk blade as its critical part, featuring a rational structure, double-faced edge, high cutting precision, and long service lifespan. Our offered 5L Semi Auto Chemical Round Can Body Cutting Machine is available in different sizes and specifications as per the need of the customers.

Technical specification

Model

GT1B16

GT1B16-3

GT1B18

GT1B18-3

Iron Cutting Speed (m/min)

74

0-30
(Stepless Speed Adjustment)

74

0-30
(Stepless Speed Adjustment)

Max. Width Allowed for Passage of Sheet Iron (mm)

1050

1050

1250

1250

Max. Cutting Thickness for Sheet Iron (mm)

0.5

0.5

0.5

0.5

Min. Width of the Cut Sheet Iron (mm)

40

40

40

40

Power of Cutting Motor (Kw)

1.5

1.5

1.5

1.5

Exterior Dimension of Machine(L×B×H)(mm)

1835x1000x1050

2285x1000x1050

2135x1000x1050

2585x1000x1050

Weight of Machine (Kg)

1350

1450

1800

1800
